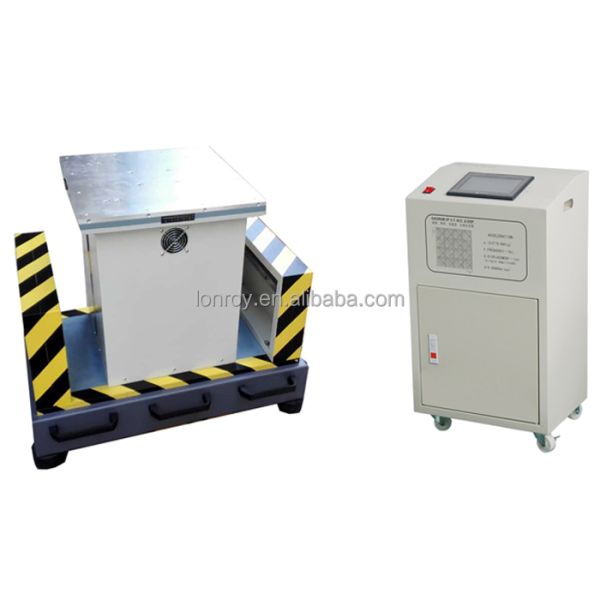

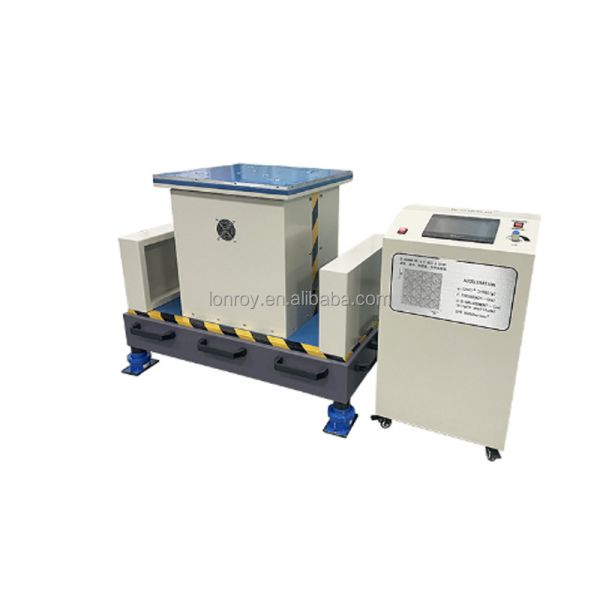

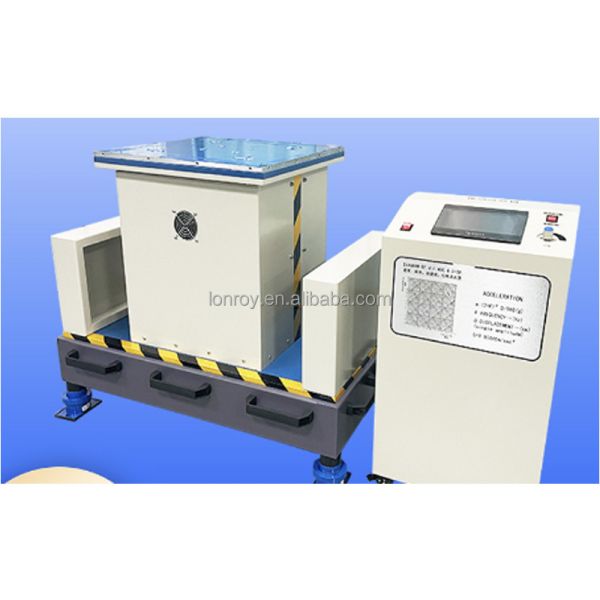

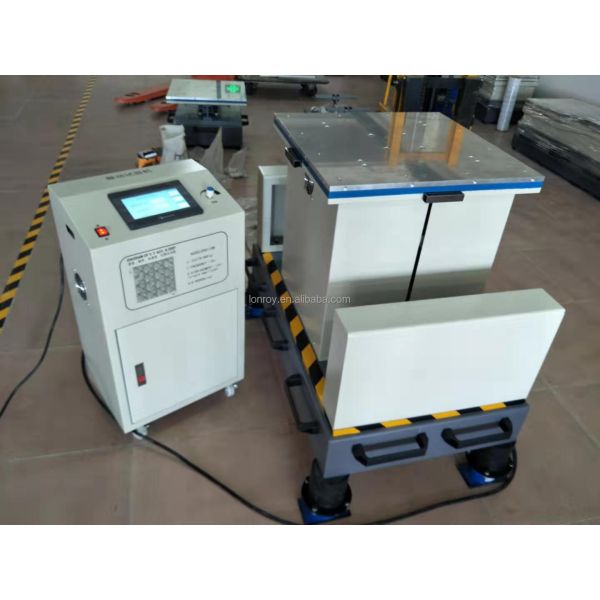

X Y Z Tester,Triaxial Vibration Tester,high Frequency Vibration Tester Vibration Test Machine Vibration Test Machine

Technical parameters

1. Product overview: electromagnetic vibration test series are widely applicable to national defense, aerospace, communications, electronics and automobiles

, home appliances and other industries.This type of equipment is used for detecting early faults, simulating actual condition assessment and structural strength test. The product has a wide range of applications, wide applicable surface, and remarkable and reliable test results.

humanized operation and control, using professional control software control, make the equipment work more stable, more reliable

the whole machine is made of compound industrial materials, precision processing, super quiet

the table panel is made of magnesium aluminum alloy material, which can completely isolate the magnetic field interference and effectively prevent magnetization of the measured object

sweep frequency and fixed frequency operation mode, adapt to different industry testing requirements

high precision frequency output, four-point synchronous vibration, even vibration table

strong anti-magnetic and anti-interference ability

has the safe and reliable protection function

the platform body adopts high efficiency and low noise fan to cool down, ensuring a long time of continuous operation

2. Technical parameters

Frequency range (Hz) :5~400

Sweep frequency range (Hz) : 5~400

Maximum acceleration (m/s2) :170

Maximum test load (kg) : 60

Maximum no-load displacement (mmp-p) : 0~5

Vibration waveform: sine wave

Axial vibration: up and down, right and left, and front and rear (3-axis all-in-one machine)

Excitation mode: electromagnetic excitation

Control mode: touch screen control

Operation mode: fixed frequency, sweep frequency

Sweep frequency: linear

Cooling mode: air cooling

Operating temperature requirement (℃) : 0~+40

Operating humidity requirements (%RH) : 0-90, no condensation

Power requirements: single-phase AC 220V/50Hz ±10%

System consumed power (KVA) : 2.2

Touch screen LCD: 7 "TFT LCD

Brightness of touch screen: 350cd/m2

Touch screen color: 65536 colors

Touch screen resolution: 800×480

Work table material: magnesium aluminum alloy

Table screw size (standard) : M8 (customizable)

Number of table screws: 8 (customizable)

Total weight (kg) : 75

Table size W.D.H. (mm) : 550×550×43

Table size W.D.H. (mm) :1100×800×450

Control cabinet size W.D.H. (mm) :720×450×750
