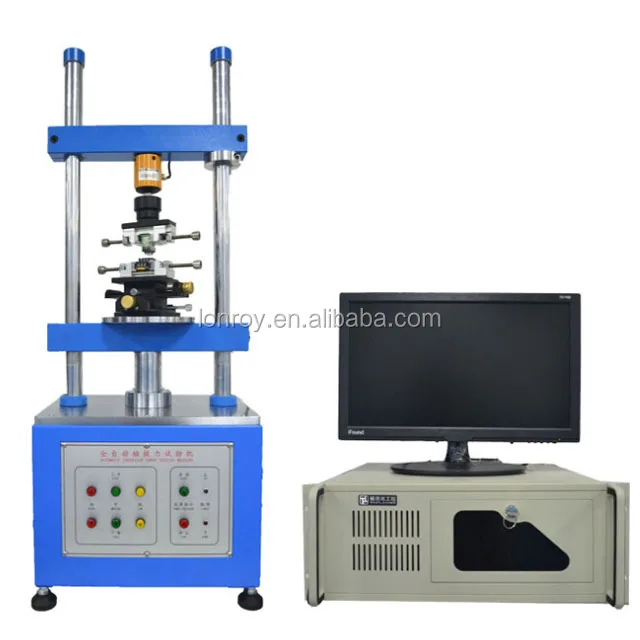

Cell Phone/USB/Connector Plug Insertion Force Test Machine Equipment Usb Plug Life Tester
Premium Products
Cell Phone/USB/Connector Plug Insertion Force Test Machine Equipment Usb Plug Life Tester
1
2
3
4
5
6
Brand Name :LONROY
Place of Origin :Guangdong, China
MOQ :1
Maximum loads :50 kg, 20 kg, 5 kg
Minimum decomposition energy :0.01 kg (1 g)
Maximum height measured :150 mm
Velocity range :0 ~ 100 mm/min
Y-axis movement range :0 ~ 75 mm
Drive mechanism :Ball screw
Appearance size :360 × 260 × 940 mm
Weight :67 kg
Power supply :AC 110V or 220V
Protection Class :IP67
Voltage :220 V, 110 V
Test items :Connector single hole plug and pull test, Connector whole row plug and pull test, Connector plug life test, Connector single PIN with plastic holding force test, Connector NORMAL FORCE test, General compression, tensile failure test
Print and store :Graphs (interpolation displacement curve, life curve, inspection report)
Data storage :Test data stored on hard disk
Test conditions :Set by computer screen
Contact Now
Cell Phone/USB/Connector Plug Insertion Force Test Machine Equipment Usb Plug Life Tester
Product introduction:
This machine is suitable for all kinds of connector insertion force and output test, tie-in patent device, design the automatic evaluation of heart will receive exactly the insertion force test, the use of WINDOWS, WINDOWS English screen set, simple and convenient operation, and all data can be stored (test conditions, the displacement curve, the life curve, inspection report...Etc.)
Cell Phone/USB/Connector Plug Insertion Force Test Machine Equipment Usb Plug Life Tester
Machine specification:
Maximum loads
50 kg, 20 kg, 5 kg
Minimum decomposition energy
0.01 kg (1 g)
Maximum height measured
150 mm
Velocity range
0 ~ 100 mm/min
X-axis movement range
Not specified
Y-axis movement range
0 ~ 75 mm
Drive mechanism
Ball screw
Appearance size
360 × 260 × 940 mm
Weight (machine)
67 kg
Power supply
AC 110V or 220V
Cell Phone/USB/Connector Plug Insertion Force Test Machine Equipment Usb Plug Life Tester
Test items:
Connector single hole plug and pull test
Connector whole row plug and pull test
Connector plug life test
Connector single PIN with plastic holding force test
Connector NORMAL FORCE test
General compression, tensile failure test
Can be connected to the contact impedance machine at the same time (optional)
Features of plug and pull force testing machine:
Print and store graphs (interpolation displacement curve, life curve, inspection report)
Test data are stored on hard disk (each batch of data can be stored for unlimited times)
The test conditions are all set by the computer screen, convenient and fast (including insertion and withdrawal stroke, speed, pause time...Etc.)
The contents of the test report header can be modified at any time (both Chinese and English)
Check report can be transferred to EXCEL for editing
