Embossed Glass Appearance Detector Patterned Glass Surface Defects Inspecting Machine Factory Price

Name: Embossed Glass Appearance Detector Patterned Glass Surface Defects Inspecting Machine Factory Price
Brand: LONROY
Price: 1 USD

Buy cheap Embossed Glass Appearance Detector Patterned Glass Surface Defects Inspecting Machine Factory Price product

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Power : 350W

Protection Class : IP56

Voltage : 220V

Equipment Dimensions : 1600*800*1800 mm

Power Supply : AC 220V/400VA

Light Source : 8 LED tubes

Tube Power : 40W each

Sample Rack Size : 1600*800 mm

Instrument Dimensions : 1600×800×1800 mm

Voltage and Power : AC 220V/400VA

Contact Now

Embossed Glass Appearance Detector Patterned Glass Surface Defects Inspecting Machine Factory Price

Product Description

I. Purpose

The LR-A339 embossed glass appearance detector is designed and manufactured in accordance with the technical requirements of the People's Republic of China National Standard GB11614-2009 "Flat Glass", and is used for

A test device for inspecting the surface defects of ordinary flat glass and patterned glass, when used in conjunction with an edge light detector, can detect bubbles, scratches, sand grains, lumps, streaks and other defects in the glass.

Surface defects such as pitting and inclusions.

II. Instrument Principle

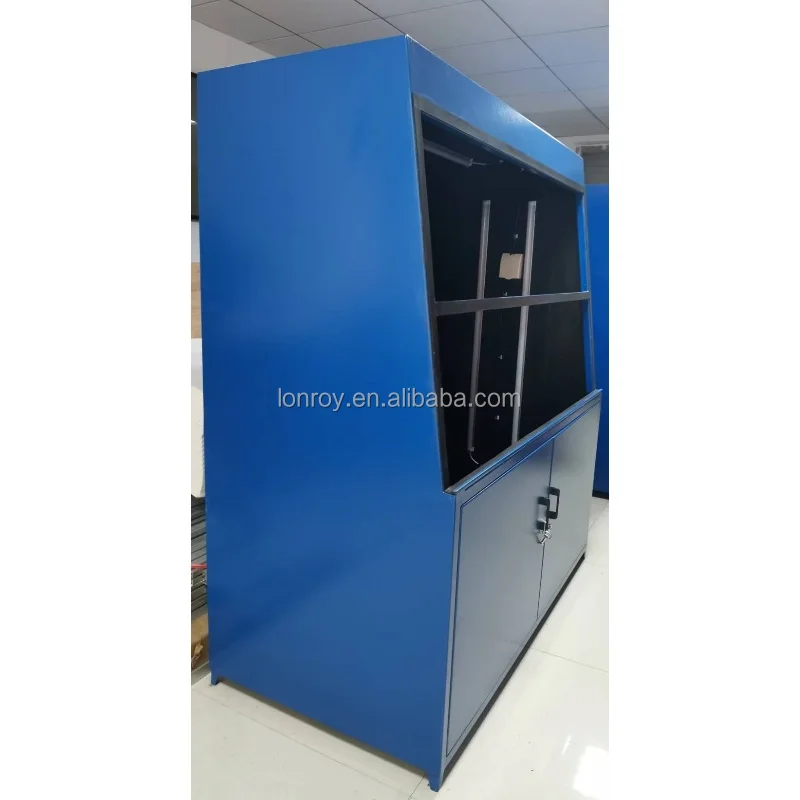

The LR-A339 embossed glass appearance detector is composed of two parts: the light source and the box frame. The light source consists of 8 LED tubes fixed on the box frame. The sample holder and the box frame are an integrated structure. At the top,

The bottom and side lights can be controlled separately.

Embossed Glass Appearance Detector Patterned Glass Surface Defects Inspecting Machine Factory Price

Technical Specification

Light Source	8 LED tubes, 40W power for each tube
Sample Rack Size	1600×800 mm
Instrument Dimensions	1600×800×1800 mm
Voltage and Power	AC 220V/400VA
