Glass Appearance Inspection Instrument Float Glass Appearance Defects Detecting Machine Factory Price

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Light Source : 7 LED lamp tubes

Light Power : 30W

Illuminance : > 600 lux

Sample Holder Size : 550 × 900 mm

Instrument Size : 1300 × 1950 × 640 mm

Voltage : AC 220V

Power Consumption : 280VA

Protection Class : IP56

Microscope Magnification : 20×

Sample Holder Distance : 600 mm

Light Source Type : LED

Sample Holder Adjustment : Hand crank

Sliding Rail : Present

Black Screen : Present

Defect Detection : Bubbles, scratches, sand particles, lumps, streaks, spots, inclusions

Contact Now

Glass Appearance Inspection Instrument Float Glass Appearance Defects Detecting Machine Factory Price

Product Description

I. Function

The LR-A337 type appearance inspection instrument is designed and manufactured in accordance with the technical requirements of the national standard GB11614-2009 <Plastic Glass>. It is a testing device used for detecting appearance defects of float glass and ordinary flat glass. When used in conjunction with the side light inspection instrument, it can detect appearance defects such as bubbles, scratches, sand particles, lumps, streaks, spots, and inclusions in the glass.

II. Instrument Principle

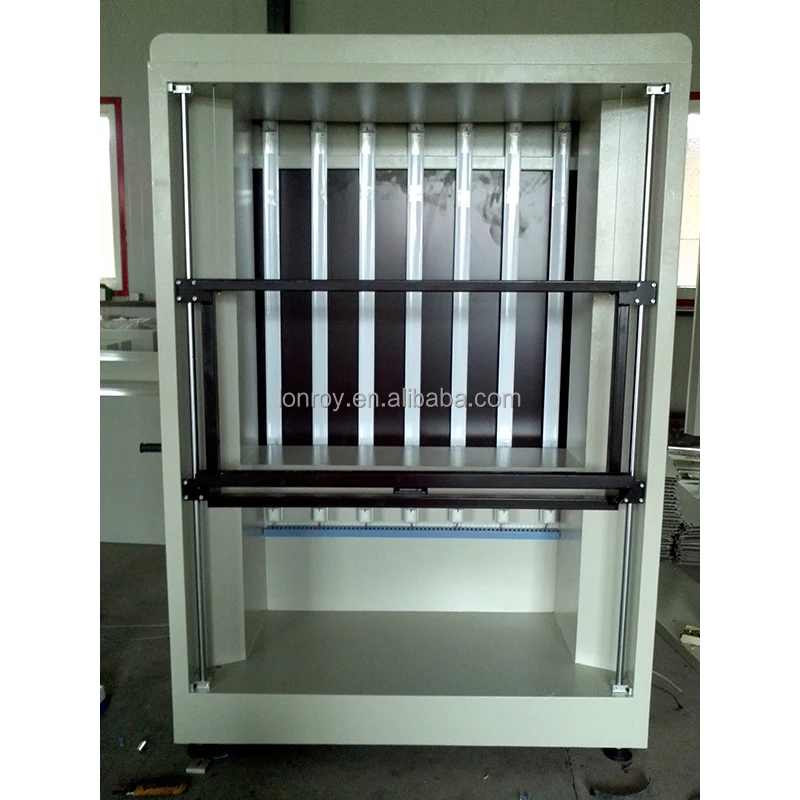

The LR-A337 type appearance inspection instrument consists of three parts: the light source, the sample holder, and the box frame. The light source is composed of seven LED lamp tubes fixed on the box frame. The sample holder is installed on the sliding rail 600mm in front of the black screen and can slide up and down. The instrument is equipped with a hand crank, which can adjust the rising and lowering of the sample holder.


Glass Appearance Inspection Instrument Float Glass Appearance Defects Detecting Machine Factory Price

Technical Specification

Light Source & Power

Light source: 7 LED lamp tubes; Power: 30W

Illuminance at Sample Holder

> 600 lux

Sample Holder Size

550 × 900 mm

Instrument Size

1300 × 1950 × 640 mm

Voltage & Power

AC 220V / 280VA

Additional Configuration

Includes one 20× magnification microscope

Glass Appearance Inspection Instrument Float Glass Appearance Defects Detecting Machine Factory PriceGlass Appearance Inspection Instrument Float Glass Appearance Defects Detecting Machine Factory Price


Product Tags:

600 Lux Illuminance Glass Appearance Inspection Instrument



550×900 mm Sample Holder Float Glass Defects Detector



1300×1950×640 mm Size Lab Testing Machine
