EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Power : 1KW

Voltage : 220V

Protection Class : Ip56

Impact height : 0 - 1200 (mm)

Wing size : 3.50-8

Impactor weight : 50Kg ± 0.1Kg

Tire brand : German Vredestein vacuum tire

Tire size : 3.50-8

Wing material : Aluminum alloy

Sample holder size : 1910 × 847 (mm)

Power supply : 220V

Impact type : Pendulum impact

Secondary impact prevention : Yes

Compliance standards : EN12600-2002, JC846-2007

Machine type : Double-tire impactor

Contact Now

EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device

Product Description

Product Introduction

The double-tire impact testing machine is designed in accordance with the standards of EN12600-2002 "Building Glass - Pendulum Impact - Flat Glass Impact Test Method and Classification" and the technical requirements of JC846-2007 "Coated Glass". It is a specialized instrument used for testing the impact resistance performance of building safety glass.

The machine consists of a sample support, a double-tire impactor, and a control frame.

The sample support needs to be installed against the wall, and the sample should be placed properly. The impactor can be lifted to the desired height through the control reel, and then the impactor can be released through the control switch to achieve pendulum impact.

This instrument has a secondary impact prevention device, which can effectively avoid the secondary impact of the impactor hitting the sample after it bounces back.


EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device

Technical Specification

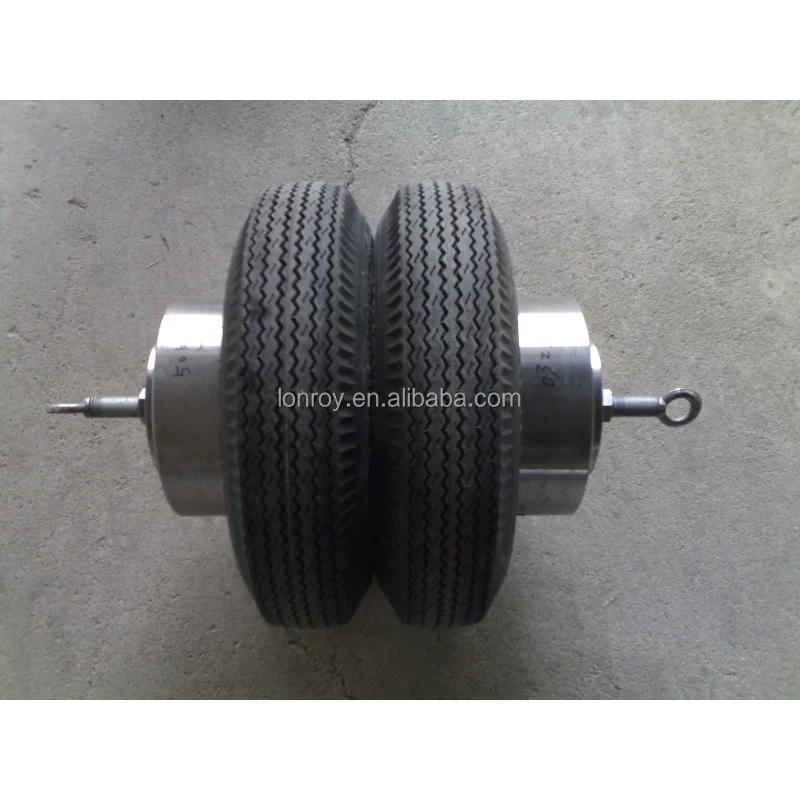

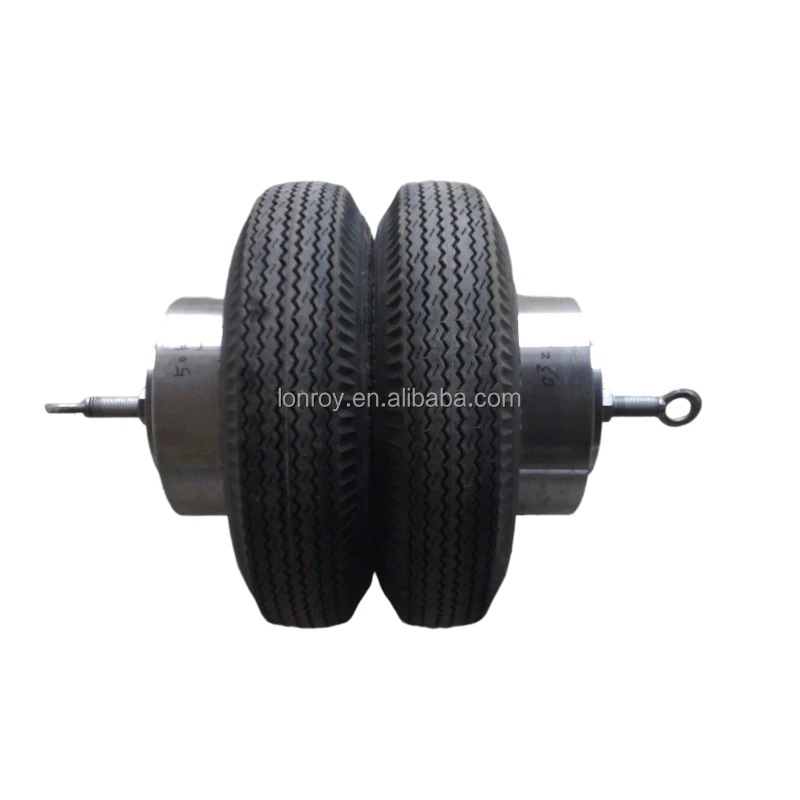

Weight of the double-tire impactor

50Kg ± 0.1Kg

Tire brand

German Vredestein vacuum tire

Tire size

3.50-8

Wing material

Aluminum alloy

Wing size

3.50-8

Inner diameter size of the sample holder

1910 × 847 (mm)

Impact height

0 - 1200 (mm)

Power supply

220V

Power

1KW

EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test DeviceEN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test DeviceEN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device
