Portable Dynamic Image Grain Size Analyzer with 10-2500 μm Measurement Range and 8-inch Color Screen

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Measurement range : 10 - 2500 μm

Analysis type : Dry analysis

Dispersion method : Vibration + airflow guidance (large particles), Vibration + pneumatic conveying (small particles)

Measurement speed : ≥ 10,000 per minute

Repeatability error : ≤ 1% (D50 deviation)

Accuracy error : ≤ 1% (D50 deviation)

Measurement parameters : Particle size (equivalent sphere diameter, Ferret diameter, distribution), Particle shape (image, roundness, aspect ratio)

On-board processor : 8-core 64-bit

Screen display : 8 inches (host), 2.8 inches (dispersion unit)

Communication method : USB, RS485, WIFI

Communication protocol : Modbus-RTU

Power supply : 16.8VDC-3A

Battery life : 10 hours (15000mAh host, 3400mAh dispersion unit)

Work environment : -20 to 60℃, 0-95%RH, 86-110KPa

Detection unit size : 328*293*181mm

Dispersion unit size : 145*261*245mm

Detection unit weight : 6.5 kg

Dispersion unit weight : 3.5 kg

Protection class : IP56

Voltage : 220 V

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

Dynamic Image Grain Size Analyzer Image Particle Size Analysis Meter Particle Shape Detection Machine

Product Description

Product Introduction

The image particle size analyzer, also known as the dynamic image particle size and shape analyzer, is a particle size and shape analyzer that analyzes the dynamic images of particles in real time. It can accurately measure the particle size, shape and distribution of the particle samples. The dynamic image particle size and shape analyzer is portable and easy to use, with a small size and light weight. It is suitable for measurements in various environments, from laboratories to outdoor settings, and is widely used in industries such as industry, construction, pharmaceuticals and food. It can be used for the particle size and shape detection of substances such as metal powders, coffee powders, and drug powders.

Functional Features

Monitoring capability: Particle size ranging from 10 to 2500 μm, particle shape

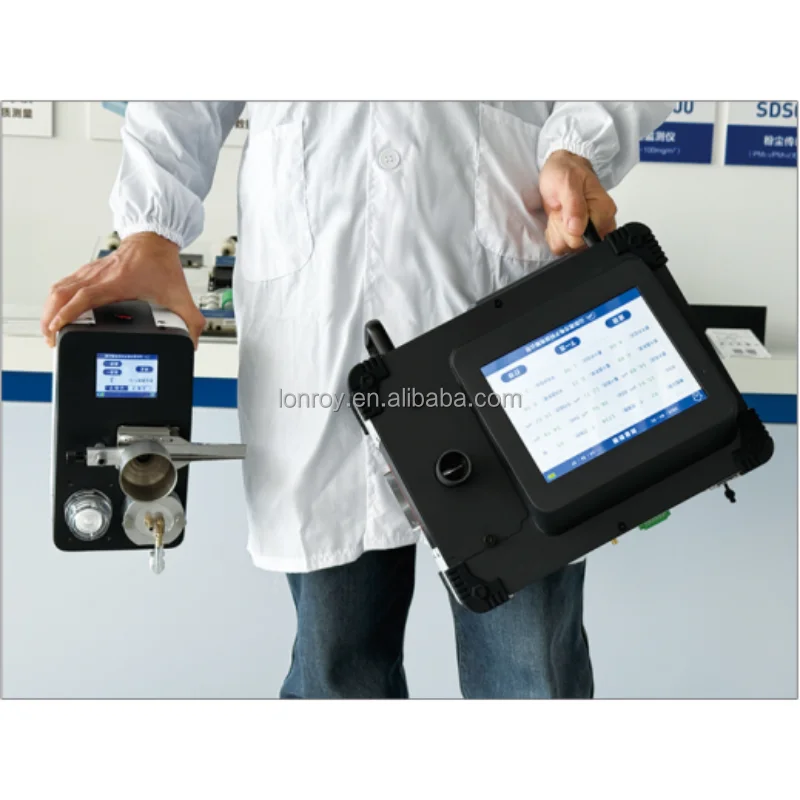

Lightweight and portable: Compact in size and light in weight. The size of the detection main unit is up to 33 cm, and its weight is only 6.5 kg.

Exceptional battery life: The built-in battery can provide more than 10 hours of usage time.

Independent operation: The host is equipped with an integrated high-performance embedded processor, eliminating the need for a PC processor to be configured.

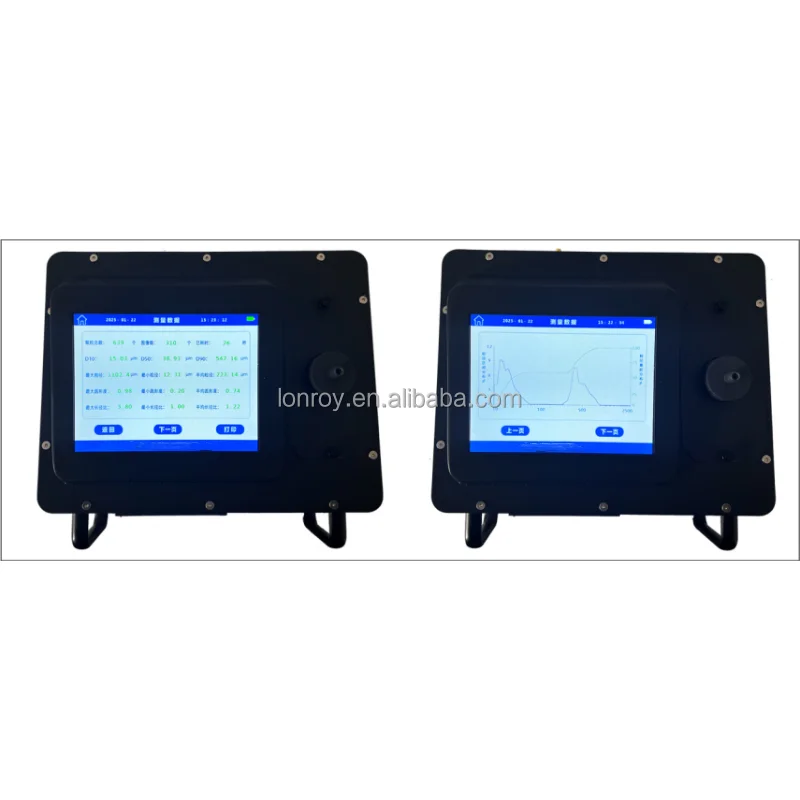

Human-computer interaction: 8-inch color screen display, full touchscreen operation, measurement and data viewing

Convenient and easy to use: No complex configuration required. Just one USB Type-C cable is needed to achieve measurement and image viewing.

Gas shielding: Clear imaging, reliable results, strong anti-contamination ability

No network available: The host is equipped with a WIFI hotspot, allowing for normal remote measurement even without a network connection.

Convenient communication: Multi-functional data acquisition communication interface: USB, RS485, WIFI

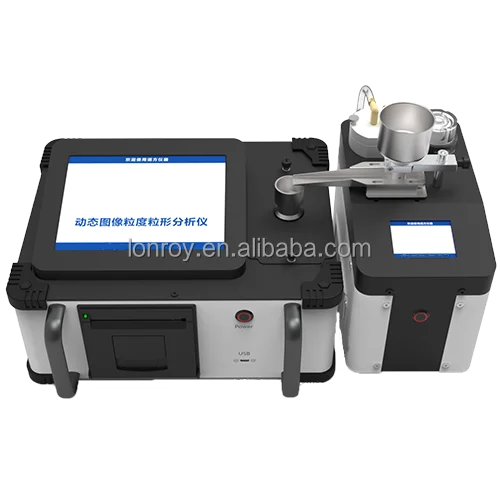

Modular design: The detection host and the decentralized unit are designed in a modular manner, resulting in low maintenance costs.

Application scenario

The dynamic image particle size analyzer is applicable to industries such as manufacturing, construction, pharmaceuticals and food. It can be used for the particle size and shape detection of substances like metal powders, coffee powders, and pharmaceutical powders.


Dynamic Image Grain Size Analyzer Image Particle Size Analysis Meter Particle Shape Detection Machine

Technical Specification

Measurement range

10 - 2500 μm

Analysis type

Dry analysis

Dispersion method

Large particles (vibration + airflow guidance)

Small particles (vibration + pneumatic conveying)

Measurement speed

≥ 10,000 per minute

Repeatability error

≤ 1% (deviation of D50 for national standard sample)

Accuracy error

≤ 1% (deviation of D50 for national standard sample)

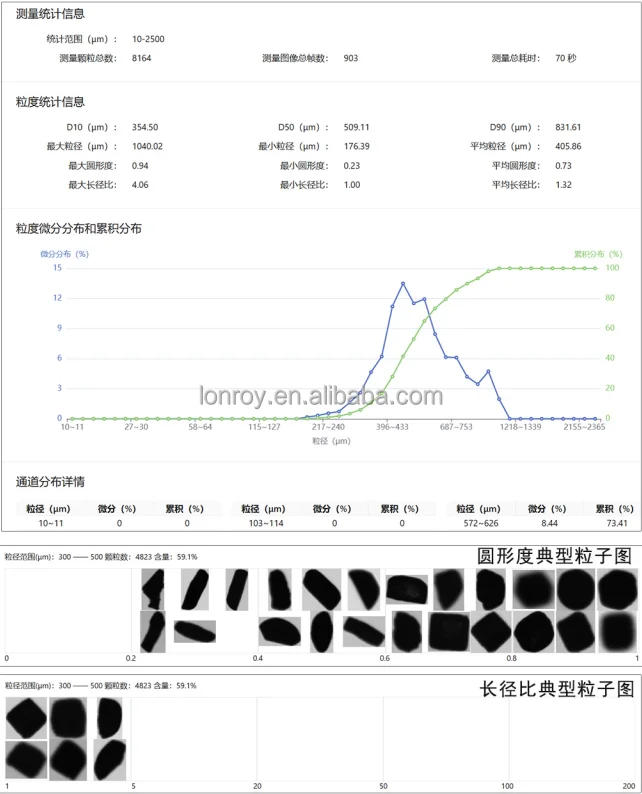

Measurement parameters

Particle size (equivalent sphere diameter, Ferret diameter, particle size distribution, etc.)

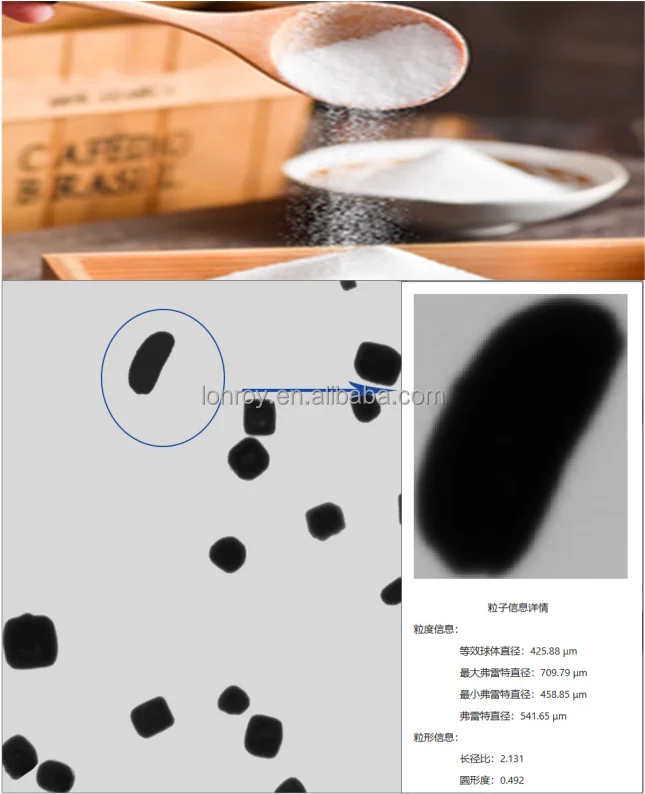

Particle shape (particle image, roundness, aspect ratio, etc.)

On-board processor

High-performance 8-core 64-bit processor

Screen display

Detection host: 8 inches

Dispersion unit: 2.8 inches

Communication method

USB,RS485,WIFI

Communication Protocol

Modbus-RTU

Power supply source

16.8VDC-3A

Battery life

Main unit capacity: 15000mAh

Dispersion unit capacity: 3400mAh

(Can operate continuously for 10 hours)

Work environment

Temperature: -20 to 60℃, Humidity: 0 to 95%RH

Atmospheric pressure: 86KPa to 110KPa

(No condensation)

Size

Detection main unit: 328*293*181mm

Dispersion unit: 145*261*245mm

Weight

Detection main unit: 6.5 kg

Dispersion unit: 3.5 kg
